Here you will find all the connectors you need at the end of the leads to actually connect to the cell. Please note that The simpler and the shorter the connection, the better. Adaptors are also available from 2 to 4 mm and vice versa.

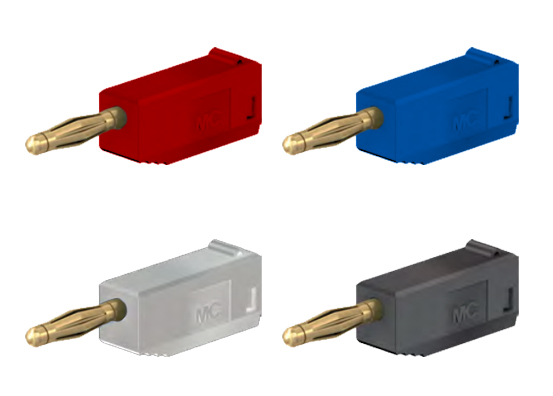

Here you will find alligator clips, 2 and 4 mm receptacles, 2 and 4 mm banana plugs, as well as 2 to 4 mm and 4 to 2 mm adaptors in all four needed colours: red, white, blue, black. Connection kits are also offered.
Specifications and ordering information
Connectors
| Product | Detail | Catalog N°. | |
| Alligator clips | 2 mm (pack of 28) 8x Red, 8x Blue, 8x White, 4x Black  | Temperature: -25°C to +100°C Rated current: 8 A (30 V AC - 60 V DC) Contact resistance: 5 mOhm | 092-1001/40 |
| 4 mm alligator clip (pack of 9) 3x Red, 3x Blue, 3x Black  | Temperature: -40°C to +80 °C Rated current: 32 A | 092-1001/41 | |
| Receptacles | 2 mm receptacle (pack of 75) 20x Red, 20x Blue, 20x White, 15x Black  | Temperature: -60°C to +100°C Rated current: 10 A Contact resistance < 1 mOhm | 092-1001/42 |
| 4 mm receptacle (pack of 36) 12x Red, 12x Blue, 12x Black  | Temperature: -60°C to +100°C Rated current: 30 A Contact resistance = 0.5 mOhm | 092-1001/43 | |
| Banana plugs | 2 mm banana plug (pack of 40) 10x Red, 10x Blue, 10x White, 10x Black  | Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC) | 092-1001/44 |
| 4 mm banana plug (pack of 24) 8x Red, 8x Blue, 8x White  | Temperature: -40°C to +70°C Rated current: 19 A (30V AC - 60 V DC) | 092-1001/45 | |
| Adaptors | 2 mm receptacle to 4 mm plug adapter (pack of 20) 6x Red, 6x Blue, 4x white, 4x Black  | Temperature: 0°C to +60°C Rated current: 10 A (30V AC - 70 V DC) | 092-1001/46 |
| 2 mm receptacle to 4 mm plug adapter for banana plug (pack of 32) 16x Red, 16x Blue  | Temperature: -40°C to +70°C Rated current: 25 A (30V AC - 60 V DC) Contact resistance = 0.4 mOhm | 092-1001/47 | |

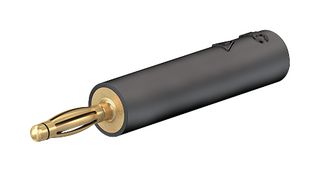

4 mm receptacle to 2 mm plug adapter for banana plug (pack of 20) | Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC) | 092-1001/48 |
Connection kits
| Description | Catalog N° |
| Standard board Content: 2 mm alligator clips (red, white, blue, black) and 2 mm receptacles (red, white, blue) | 092-1001/30 |
| Booster board Content: 2 mm alligator clips (red, white, blue), 4 mm alligator clips (red, black), and 2 mm receptacles (red, white, blue) and 4 mm receptacles (blue, white) | 092-1001/31 |
| Alligator clips for 8 channel BCS Content: 4 mm clips (red, blue) x 8, 2 mm clips (red, blue) x 8 | 096-017 |
| Cell cable for BCS-805/810 - 0.25 m | 096-021/1 |
| Cell cable for BCS-805/810 - 2.5 m | 096-021/2 |
| Cell cable for BCS-805/810 - 5 m | 096-021/3 |
| Cell connectors for BCS-805/810 – Pack of 8 | 092-1001/35 |
Specifications and ordering information
Connectors
| Product | Detail | Catalog N°. | |
| Alligator clips | 2 mm (pack of 28) 8x Red, 8x Blue, 8x White, 4x Black | Temperature: -25°C to +100°C Rated current: 8 A (30 V AC - 60 V DC) Contact resistance: 5 mOhm | 092-1001/40 |
| 4 mm alligator clip (pack of 9) 3x Red, 3x Blue, 3x Black | Temperature: -40°C to +80 °C Rated current: 32 A | 092-1001/41 | |
| Receptacles | 2 mm receptacle (pack of 75) 20x Red, 20x Blue, 20x White, 15x Black | Temperature: -60°C to +100°C Rated current: 10 A Contact resistance < 1 mOhm | 092-1001/42 |
| 4 mm receptacle (pack of 36) 12x Red, 12x Blue, 12x Black | Temperature: -60°C to +100°C Rated current: 30 A Contact resistance = 0.5 mOhm | 092-1001/43 | |
| Banana plugs | 2 mm banana plug (pack of 40) 10x Red, 10x Blue, 10x White, 10x Black | Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC) | 092-1001/44 |
| 4 mm banana plug (pack of 24) 8x Red, 8x Blue, 8x White | Temperature: -40°C to +70°C Rated current: 19 A (30V AC - 60 V DC) | 092-1001/45 | |
| Adaptors | 2 mm receptacle to 4 mm plug adapter (pack of 20) 6x Red, 6x Blue, 4x white, 4x Black | Temperature: 0°C to +60°C Rated current: 10 A (30V AC - 70 V DC) | 092-1001/46 |
| 2 mm receptacle to 4 mm plug adapter for banana plug (pack of 32) 16x Red, 16x Blue | Temperature: -40°C to +70°C Rated current: 25 A (30V AC - 60 V DC) Contact resistance = 0.4 mOhm | 092-1001/47 | |
| 4 mm receptacle to 2 mm plug adapter for banana plug (pack of 20) | Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC) | 092-1001/48 |
Connection kits
| Description | Catalog N° |
| Standard board Content: 2 mm alligator clips (red, white, blue, black) and 2 mm receptacles (red, white, blue) | 092-1001/30 |
| Booster board Content: 2 mm alligator clips (red, white, blue), 4 mm alligator clips (red, black), and 2 mm receptacles (red, white, blue) and 4 mm receptacles (blue, white) | 092-1001/31 |
| Alligator clips for 8 channel BCS Content: 4 mm clips (red, blue) x 8, 2 mm clips (red, blue) x 8 | 096-017 |
| Cell cable for BCS-805/810 - 0.25 m | 096-021/1 |
| Cell cable for BCS-805/810 - 2.5 m | 096-021/2 |
| Cell cable for BCS-805/810 - 5 m | 096-021/3 |
| Cell connectors for BCS-805/810 – Pack of 8 | 092-1001/35 |
